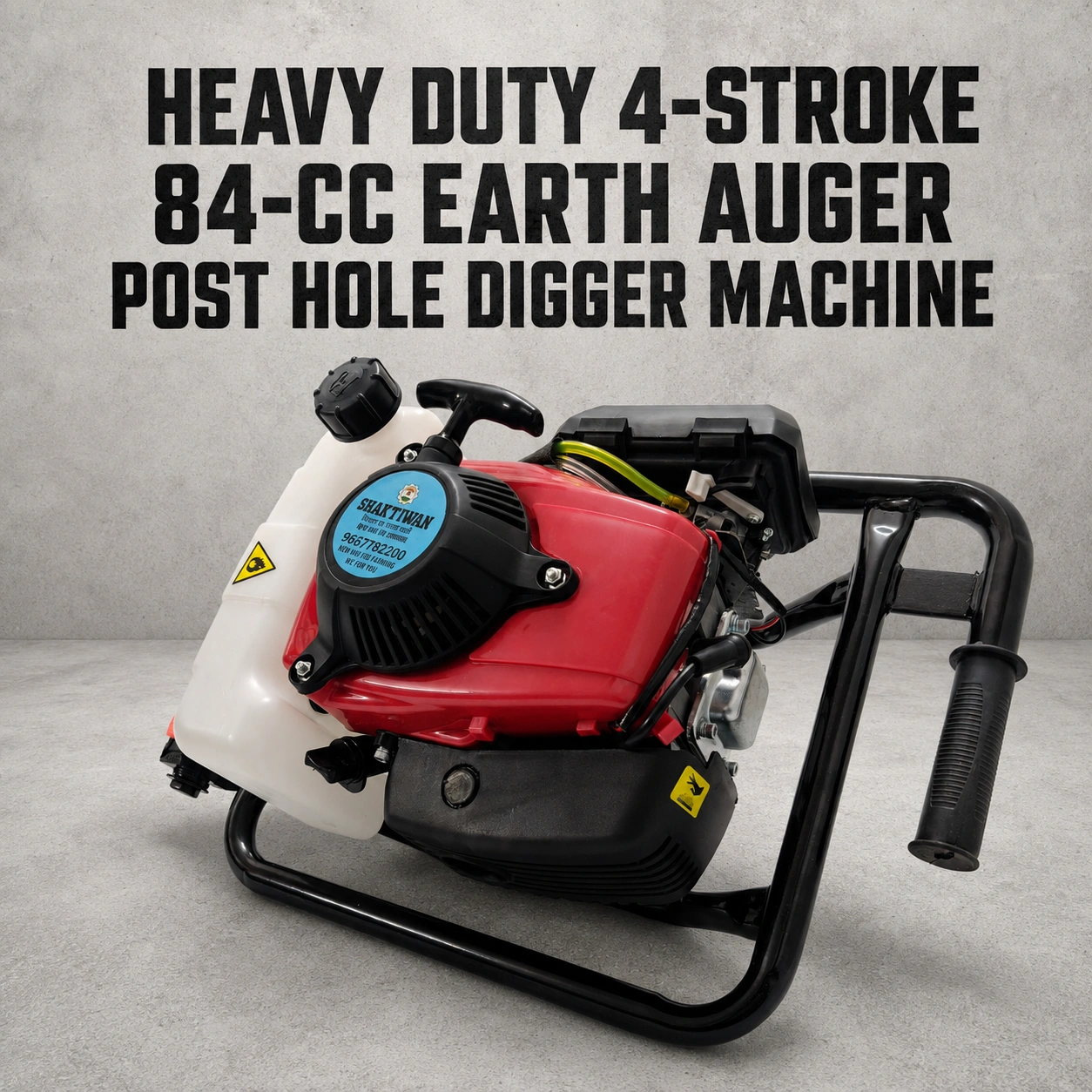

Heavy Duty 4-stroke, 84-cc Earth Auger / Post Hole Digger Machine

Specifications

Weight (Approx.) : 17.5 kg with drill
Fuel Used : Petrol
Displacement : 84cc
Stroke : 4
Engine Model No. : 144F
Engine Type : Single Cylinder
Stroke : 4-stroke
Cooling Type : Air-cooled
Fuel Used : Petrol engine
Engine Displacement : 84-cc
Engine Power : 4HP
No. Load Speed : 10000 RPM
Bit Diameter : 12 inch (30.48 cm) (Approx.)
Bit Length : 80 cm (Approx.)
Engine oil capacity : Engine oil 200 ml (10W30/20W40)
Fuel Tank Capacity : 1500 ml
Fuel Consumption : 700 ml/hr (Approx.)
Capacity : 90 – 100 holes in 1L Petrol
Machine Weight : 11 kg (Approx.)
Bit Weight : 6.5 kg (Approx.)

Description

Introducing the Heavy Duty 4-stroke, 84-cc Earth Auger/ Post Hole Digger Machine with 12 inch Auger Bit – the ultimate solution for all your drilling needs. Crafted with exceptional durability and power, this auger is designed to tackle the toughest terrain with ease. Powered by a robust 82-cc engine, this two-man operated auger delivers exceptional performance, allowing you to effortlessly drill through soil, sand, and even hard-packed earth. The 12-inch (30.48 cm) auger bit ensures efficient, high-volume removal of material, saving you time and effort on every project. Built to withstand the demands of professional use, this earth auger features a sturdy construction that can handle the most challenging conditions. With its ergonomic design and vibration-reducing technology, you can work for extended periods with comfort and control. Whether you’re installing fence posts, planting trees, or digging foundation holes, the Heavy Duty 4-stroke, 84-cc Earth Auger with 12 inch (30.48 cm) Auger Bit is the reliable and powerful tool you can trust to get the job done right.

Accessories

84-cc Earth Auger
2 inch Auger Bit
Toolkit
User manual

Features:

Heavy Duty Build Quality
Easy to Operate & Maintain
Excellent Digging Capability

Applications:

Used to dig in different kinds of soil.

Usage:

Before you start:
> Fill the tank with unleaded petrol. No 2T oil needed, there is a separate chamber for pouring the engine oil (20W40).
> Wear the necessary safety items like boots, gloves, etc for protection.
> Attach the appropriate auger bit for the desired hole size.

Starting the machine:
Operator 1 :
– Check fuel level and ensure the fuel line is properly connected.
– Set the choke to the “choke” position.
– Prime the engine by pumping the primer bulb if necessary.
– While firmly holding the pull cord, pull it briskly to start the engine.
– Once the engine starts, slowly transition the choke to the “run” position.
Operator 2 :
– Gradually increase the engine throttle to engage the auger into the ground.
– Maintain a firm grip on the handles and use body weight to push the auger down.
> Both operators should work together to maintain a steady pace and control the direction of the hole.
> Use the depth markings on the auger to reach the desired hole depth.
> Now, gently guide the auger bit into the ground, applying slight downward pressure to initiate drilling.
