68 CC Earth Auger

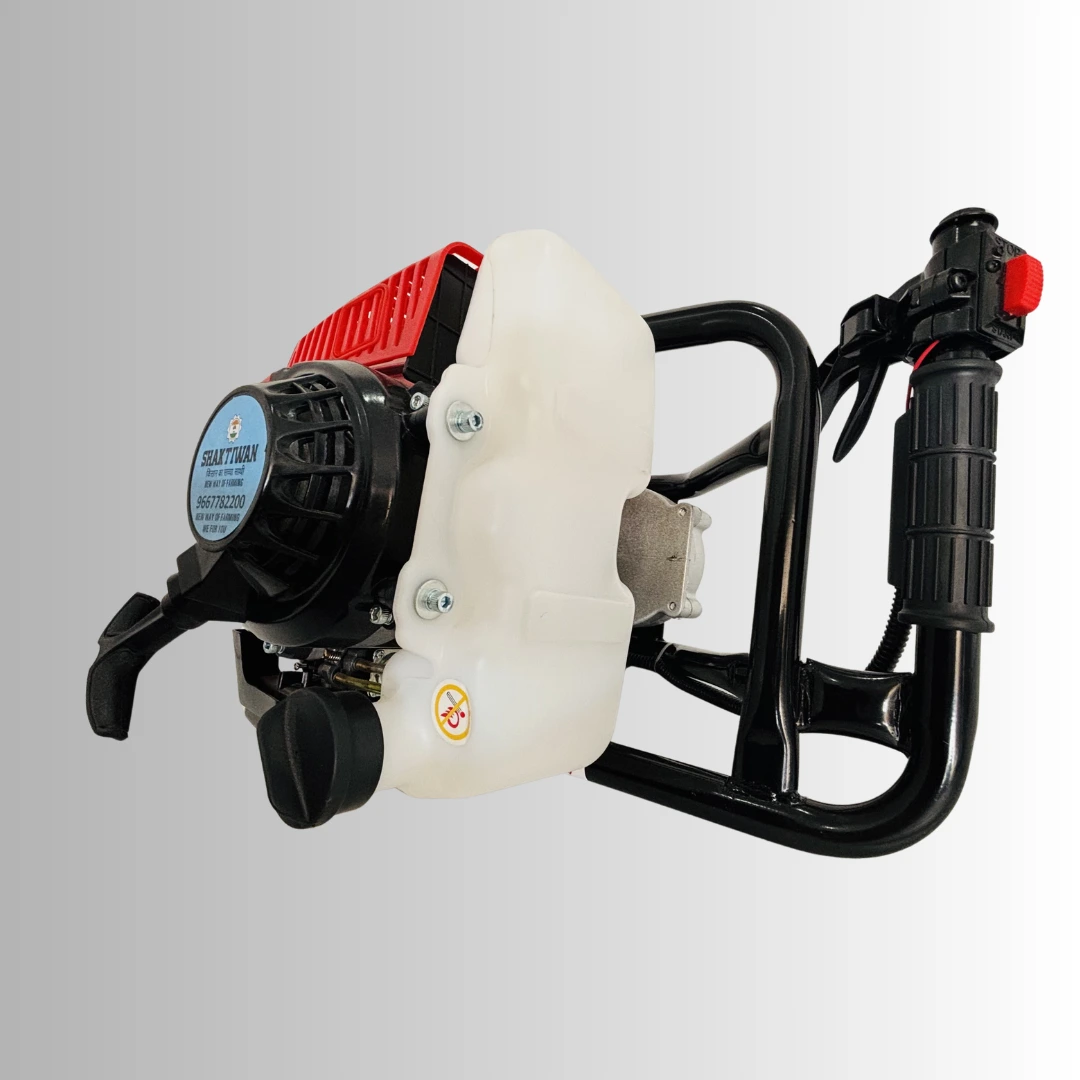

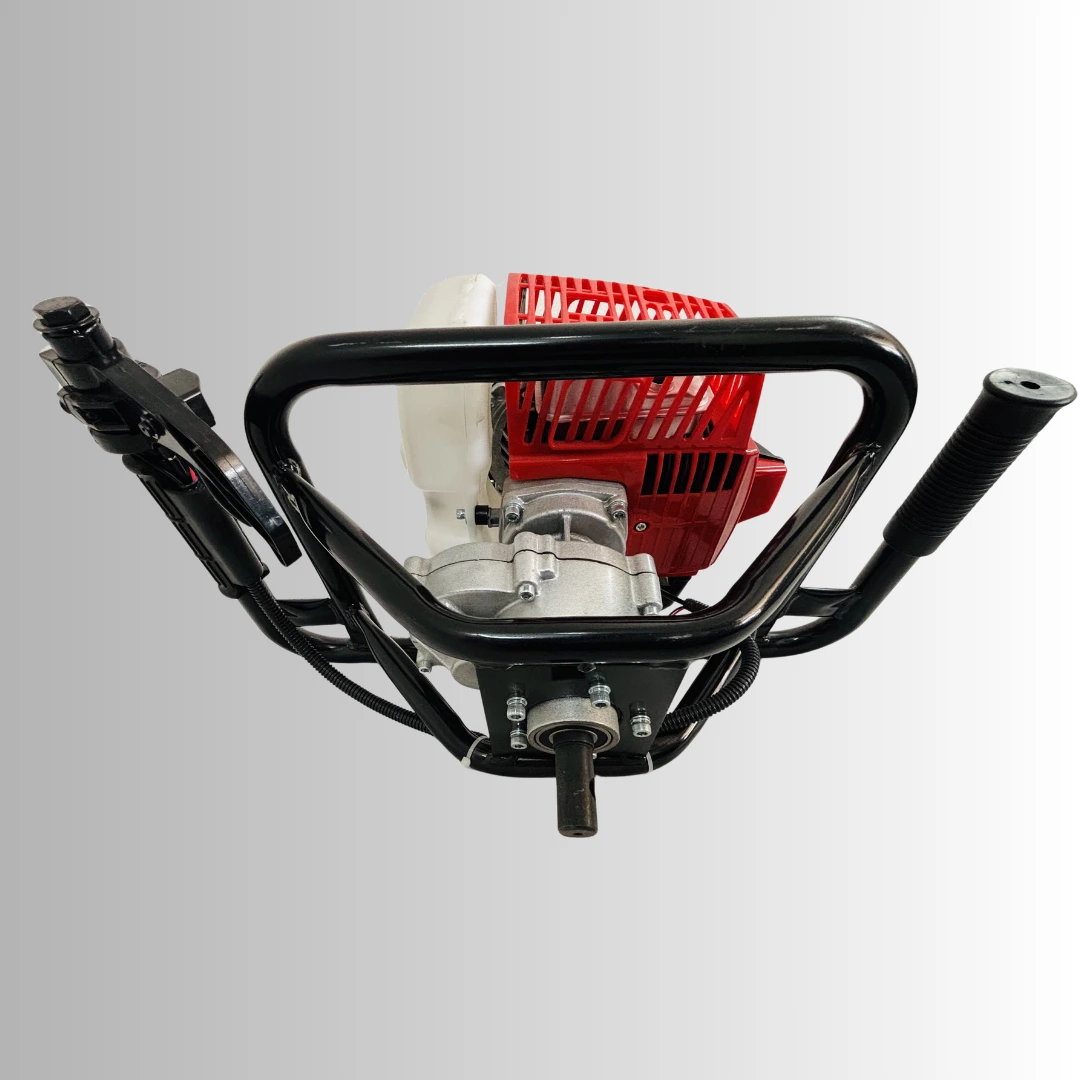

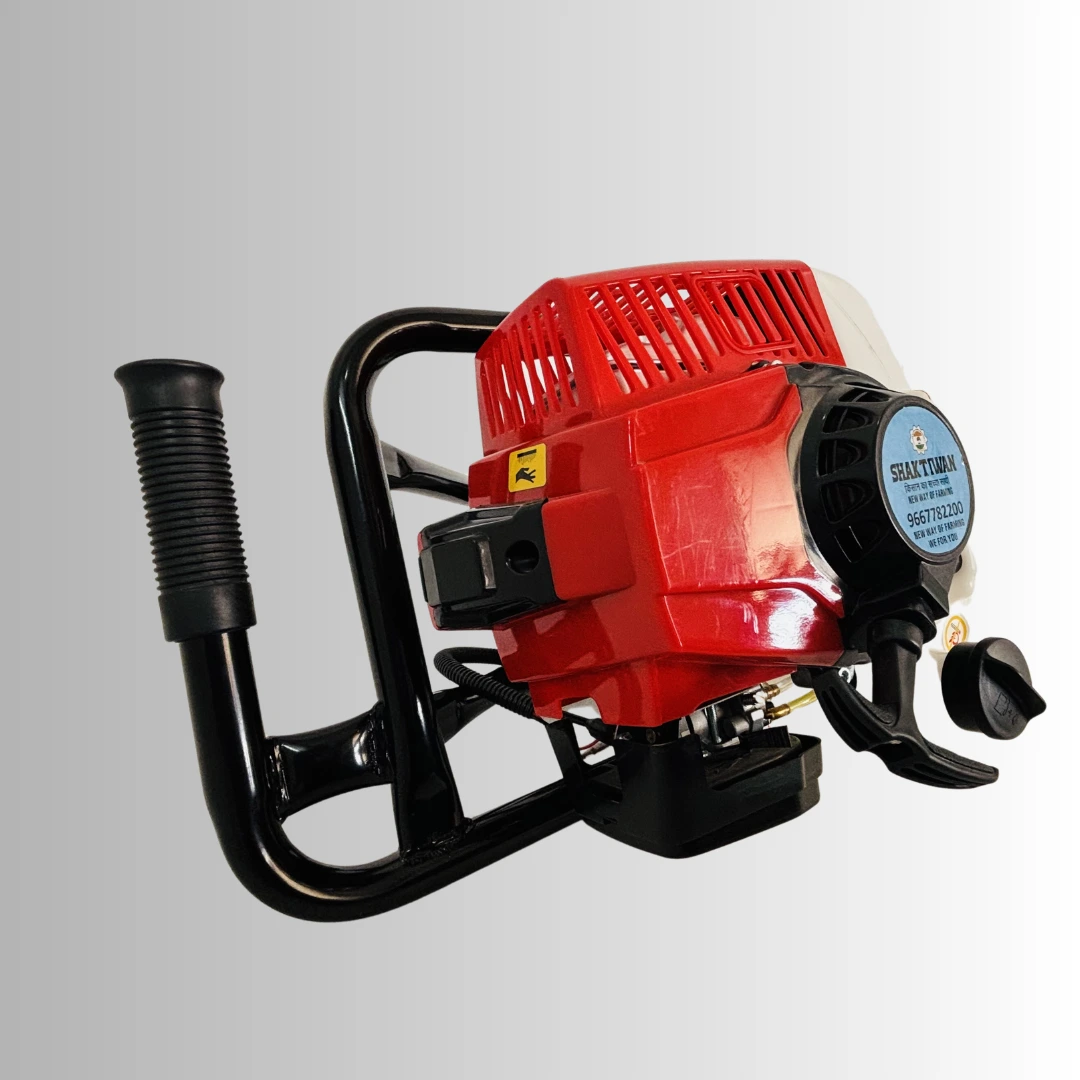

Heavy-Duty 68cc 2-Stroke Petrol Earth Auger

The Heavy-Duty 68cc Petrol Earth Auger is a powerful and portable drilling machine designed for fast and efficient digging in agricultural fields, gardens, orchards, fencing sites, and construction areas.

Powered by a high-output 68cc single-cylinder, air-cooled 2-stroke petrol engine, the machine delivers up to 2.3 kW of power and operates at speeds of up to 9500 RPM. Its strong engine performance and industrial-grade gearbox provide the high torque required for drilling deep holes in different soil conditions.

The earth auger is equipped with wide, ergonomic handles and an anti-vibration system that helps improve operator control and reduce fatigue during extended use. Its compact design and approximate weight of 13 kg make it easier to transport and operate across different job sites.

The easy-start system includes a reliable recoil starter and primer bulb, allowing quick ignition even in humid, cold, or demanding agricultural environments. With an approximate fuel consumption of 700 ml per hour, the machine offers an efficient solution for frequent soil-drilling work.

Key Features

• Powerful 2.3 kW output
• High-performance 68cc 2-stroke petrol engine
• Single-cylinder, air-cooled engine design
• Engine speed of up to 9500 RPM
• Industrial-grade gearbox for high drilling torque
• High-tensile planetary gears for efficient power transfer
• Anti-vibration ergonomic handles
• Wide reinforced handles for improved stability
• Easy-start recoil starter with primer bulb
• Lightweight and portable design
• Approximately 13 kg machine weight
• Large 1.5-litre fuel tank
• Approximate fuel consumption of 700 ml per hour
• Capable of digging approximately 80–100 holes per litre of petrol, depending on soil and bit size
• Suitable for agricultural, landscaping, fencing, and construction applications

Technical Specifications

Power: 2.3 kW
Engine Type: Single-Cylinder Petrol Engine
Cooling System: Air-Cooled
Displacement: 68cc
Stroke: 2-Stroke
Fuel Type: Petrol and 2T Oil Mixture
No-Load Speed: Up to 9500 RPM
Starting System: Recoil Start with Primer Bulb
Fuel Tank Capacity: 1.5 Litres
Fuel Consumption: Approximately 700 ml per hour
Oil Mixing Ratio: 40 ml of 2T Oil per 1 Litre of Petrol
Approximate Digging Capacity: 80–100 Holes per Litre of Petrol
Approximate Weight: 13 kg

Applications

The 68cc petrol earth auger is suitable for:

• Digging holes for fence posts
• Tree and sapling plantation
• Agricultural fieldwork
• Orchard and garden development
• Pole installation
• Landscaping projects
• Soil sampling
• Construction-site drilling
• Nursery and farm applications

Operating Instructions

Fuel Mixing: Prepare a fresh mixture of petrol and high-quality 2T oil at a ratio of 40 ml of 2T oil per 1 litre of petrol.

Engine Startup: Turn the ignition switch to the “On” position, press the primer bulb three to five times, activate the choke, and pull the recoil starter firmly.

Operating Position: Maintain a wide and balanced stance while holding both handles firmly to control the machine’s rotational torque.

Drilling Process: Gradually engage the throttle and allow the auger bit to rotate into the soil. Lift the bit periodically to remove loose soil and prevent it from getting stuck.

Safety Note

Always wear suitable safety equipment, including gloves, safety shoes, eye protection, and hearing protection. Inspect the drilling area for underground cables, pipes, stones, and other obstructions before operating the machine.
